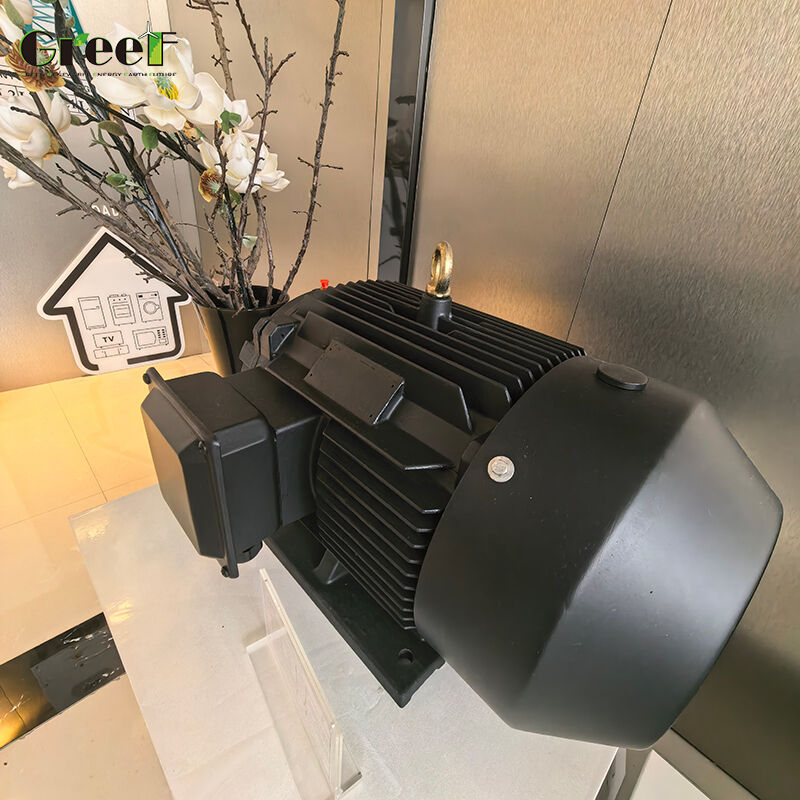

6 Poles Permanent Magnet Motor with High Efficiency >95% and Insulating Resistance 100Mohm Min 500Vdc for Industrial Applications

6 Poles Permanent Magnet Motor

High Efficiency Permanent Magnet Motor

Insulating Resistance Permanent Magnet Motor

Nom de marque:

Greef

Certification:

Model Number:

TYP

Nous contacter

Demandez un devis

6 Poles Permanent Magnet Motor with High Efficiency >95% and Insulating Resistance 100Mohm Min 500Vdc for Industrial Applications

Détails du produit

Plage de vitesse:

0-8000 t/mn

Matériau de la coque du générateur:

fonte

Effienciency:

>95%

Classification des diplômes:

IP54

Fréquence:

50/60Hz

Marque de roulement:

SKF

Type de moteur:

Aimant permanent

Nom du produit:

Moteur à un aimant permanent

Conditions de paiement et d'expédition

Minimum Order Quantity

1Set

Prix

negotiable

Packaging Details

Foam+plywooden Case

Delivery Time

25 Working Days

Conditions de paiement

T/T, Western Union, MoneyGram, L/C

Supply Ability

PRODUITS CONNEXES

Efficiency greater than 95 percent Permanent Magnet Motor supported by SKF Bearing providing torque and long term stability

Obtenez le meilleur prix

Permanent Magnet Magnetic Motor Featuring IP54 Classification Providing Enhanced Protection and Efficiency for Industrial

Obtenez le meilleur prix

Motor Permanent Magnet Motor Perfect for Electric Vehicles Providing and Low Noise Operation in Automated Production Lines

Obtenez le meilleur prix

Motor Electromechanical Motor with SKF Bearing Providing Power Output and Stable Operation in Automated Production Lines

Obtenez le meilleur prix

Nous contacter

Contactez-nous maintenant

Description du produit

6-Pole Permanent Magnet Electric Motor

Advanced Permanent Magnet Technology

TYP magnet motors feature rotors with permanent magnets, delivering superior performance through improved efficiency and increased power density within the same frame size. Powered by frequency inverters, these motors maintain consistent torque across a broad speed range and operate efficiently at low speeds without forced ventilation. W21 magnet motors complement this with low-speed operation, minimal noise generation, and exceptional energy-saving capabilities for applications requiring quiet, efficient performance.

Key Performance Features

High Efficiency & Energy Saving

Saves 30% energy vs induction motors, operates efficiently from 20% to 110% rated load, achieves power factor near 1.0, reducing stator current and copper losses.

Constant Torque Performance

Maintains constant torque across wide speed range without forced ventilation, ideal for variable speed applications.

Extended Bearing Life

L10 bearing lifespan up to 100,000 hours (10+ years continuous operation) with grease nipples for easy maintenance.

Advanced Magnet Technology

NdFeB rare-earth magnets 18x stronger than ferrite, epoxy-coated for corrosion resistance and mechanical strength.

Integrated Thermal Protection

PTC thermistors protect against overheating from phase loss, overload, and voltage fluctuations.

Synchronous Operation

Stable speed performance unaffected by voltage or load changes, enhancing control accuracy.

Technical Specifications

Parameter	Specification
Number of Poles	6
Insulating Resistance	100Mohm Min at 500Vdc
Efficiency	>95%
Speed Range	0-8000 RPM
Bearing Life (L10)	100,000 hours
Temperature Rise	15-20°C lower than equivalent asynchronous motors

Industrial Applications

These high-efficiency permanent magnet synchronous motors are engineered for demanding industrial environments including:

Injection molding machines
Air compressors and hydraulic machinery
Pipe making equipment and extruders
Food processing and pharmaceutical equipment
Wire drawing machines and cement pipe production

Customization Options

Greef offers customizable low-speed Permanent Magnet Motors (Model TYP) manufactured in China with CE certification. Minimum order quantity: 1 set with flexible pricing. Delivery within 25 working days with secure foam and plywood packaging. Payment options include T/T, Western Union, MoneyGram, and L/C.

Packaging & Shipping

Each motor is securely wrapped in protective materials and placed in custom-designed boxes for safe transit. We partner with reliable carriers offering tracking and insurance, with standard, expedited, and freight shipping options available.

Significant Cost Savings: Switching from a 37kW IE2 induction motor can yield approximately 9,000 RMB in annual energy savings with 24/7 operation.
